Clawfoot Tub Sizes: Lengths, Heights and What Fits

Clawfoot and freestanding tubs come in a handful of standard lengths, but width, height and shape change how a tub feels and how much room it needs. Here's what the numbers mean, using our own tubs as examples.

Length: 5', 5 1/2' or 6'

Length Good for Our examples
60"–61 1/2" Smaller bathrooms; the classic size Huron, St. Claire, Madrone, Como
65"–67" A longer soak without a huge footprint Seneca, Arcadia, Lewis, Lagoon, Austin
71"–72" Tall bathers, or two people Great Lake, Echo, Summit, Luna

Width and height

Our tubs are 28 1/2" to 34 1/2" wide. Height depends on the shape: a double-ended tub, with the drain in the middle and both ends sloped, stands about 24" tall. A slipper tub raises one end (single slipper) or both ends (double slipper) for a reclining back, and stands about 26" to 33 1/2" at its highest point.

Depth and capacity

Soaking depth runs from about 15" to 18 3/4" across our tubs, and capacity from 31 to 68 gallons. Deeper isn't always better: a bigger tub takes longer to fill and needs a larger water heater to fill it hot.

Will it fit?

  • Measure the room, then leave space around the tub to clean behind it and reach the faucet.
  • Measure the way in. The tub has to fit through every door, hallway and stair turn on its way to the bathroom.
  • Find the drain. Note where your existing drain sits, and choose a tub and position that line up with it.
  • Choose the faucet with the tub. Drilled tubs take a rim-mount faucet; undrilled tubs take a wall or floor-mount one. See how to choose a clawfoot tub faucet.

See every one of our tubs side by side in the bathtub chart, or browse all tubs.

Previous Post Next Post

Related Posts

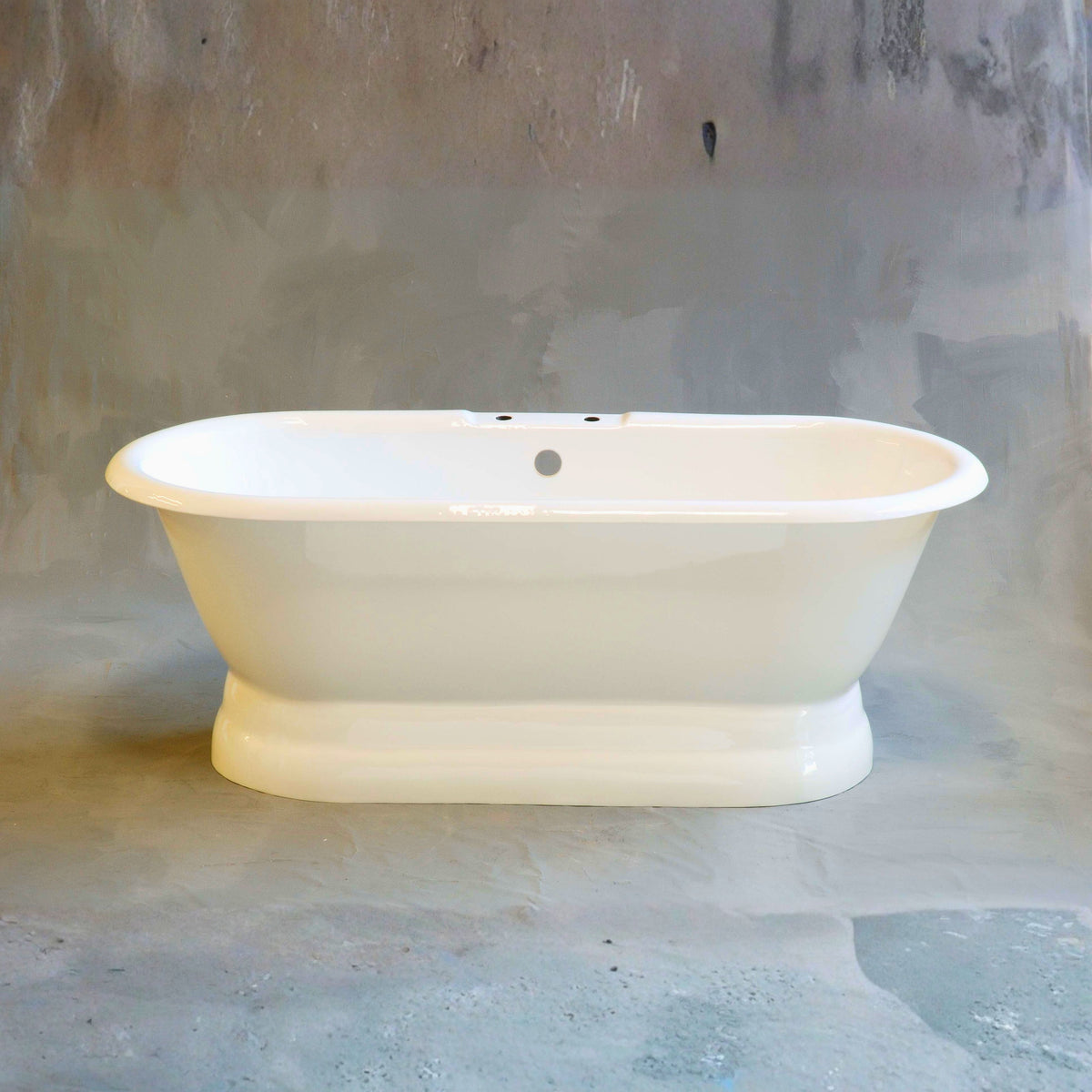

Strom Living Lagoon cast iron double ended pedestal tub

How Much Does a Cast Iron Tub Weigh?

Cast iron is what makes a clawfoot tub feel so solid, and it's heavy. Most cast iron tubs weigh between about 350 and 500 pounds empty, depending on size and style. Our cast iron tubs, empty Tub Empty Crated for shipping Mendocino 5' clawfoot 352 lb 520 lb Como 5' leg tub 352 lb 520 lb Charles 5' rectangular leg tub* 404 lb 515 lb Lewis 5.5' rectangular leg tub* 437 lb 559 lb Michigan 5' pedestal 460 lb 593 lb Lagoon 5.5' pedestal 475 lb 635 lb Luna 6' pedestal 506 lb 640 lb * Includes its feet, about 30 lb. Our pedestal tubs weigh more than the ones on feet. Full of water Water weighs about 8.3 pounds a gallon. The Lagoon holds about 45 gallons, so the water alone adds around 375 pounds. Add the tub and a person, and a filled cast iron tub can weigh close to half a ton, spread across just four feet or one pedestal. Before it arrives Check the floor. Ask a contractor to check the floor where the tub will sit, especially in an older home or an upstairs bathroom. Plan the route. Measure doorways, stairs and turns from the street to the bathroom against the tub's size. Line up help. The crated weight is what arrives at your door. Have enough people, or a mover, to carry it in safely. Cast iron or acrylic? Most of our acrylic tubs weigh between about 70 and 150 pounds empty, a third of cast iron or less, which makes them easier for upstairs bathrooms. Cast iron holds heat longer and has a heavy, solid feel. Our cast iron vs acrylic guide compares them in full, and clawfoot tub sizes helps you check the fit. Browse cast iron tubs and acrylic tubs, or ask us about a specific model's weight.

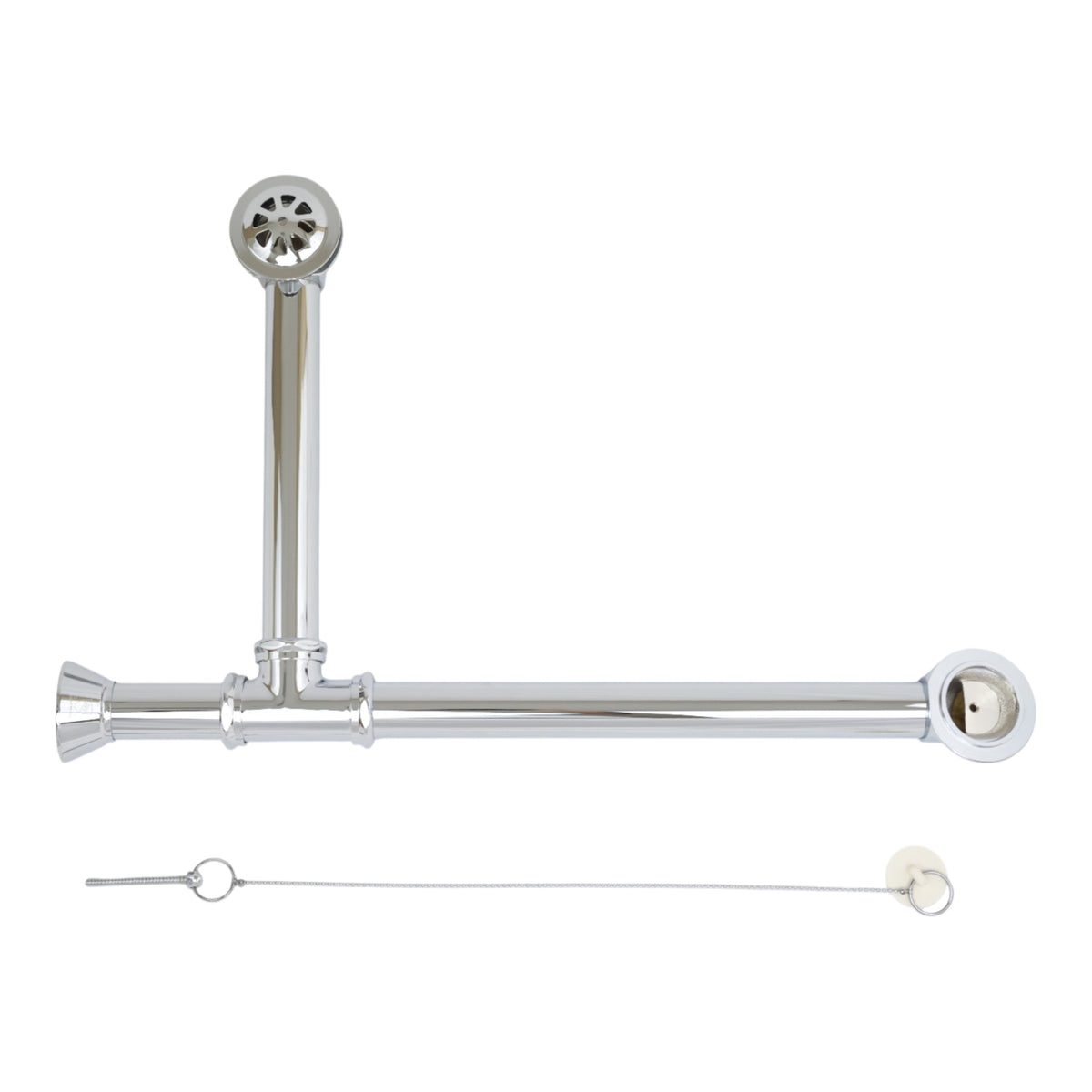

Strom Living P0007 chain and stopper waste and overflow tub drain

Clawfoot Tub Drains: Chain and Stopper, Lift and Turn, or Toe Touch

On a clawfoot tub the drain is out in the open, so it's part of the look. It's called a waste and overflow: a drain at the bottom of the tub, an overflow near the top, and the pipe that joins them to your floor. Three ways to close it Chain and stopper. The classic: a plug on a chain. Lift and turn. A stopper in the drain that you lift and twist to open or close. Toe touch. Press the stopper with your foot to close it, press again to open. Our P0007 waste and overflow drain comes in all three; you choose the type when you order. It fits most leg tubs made from 1900 on. The measurements that matter Waste from the T: 12" Overflow from the T: 16" Drain and overflow flange: 3" Floor escutcheon: 2.5" across Measure your tub's drain and overflow before you order, and match the finish to your faucet and feet. Freestanding acrylic tubs Some freestanding acrylic tubs, like our Seneca, come with an integrated drain. Check the tub's specifications before buying a separate one. Keeping it working Washers and seats wear with normal use, and that's the most common cause of a leaking drain. A washer repair kit fixes it without replacing the drain. We also sell the chain and stopper set, the lift and turn part, a 1 1/2" × 24" waste tube and overflow brackets. See all tub drains and drain parts, or send us a photo if you're not sure what fits.

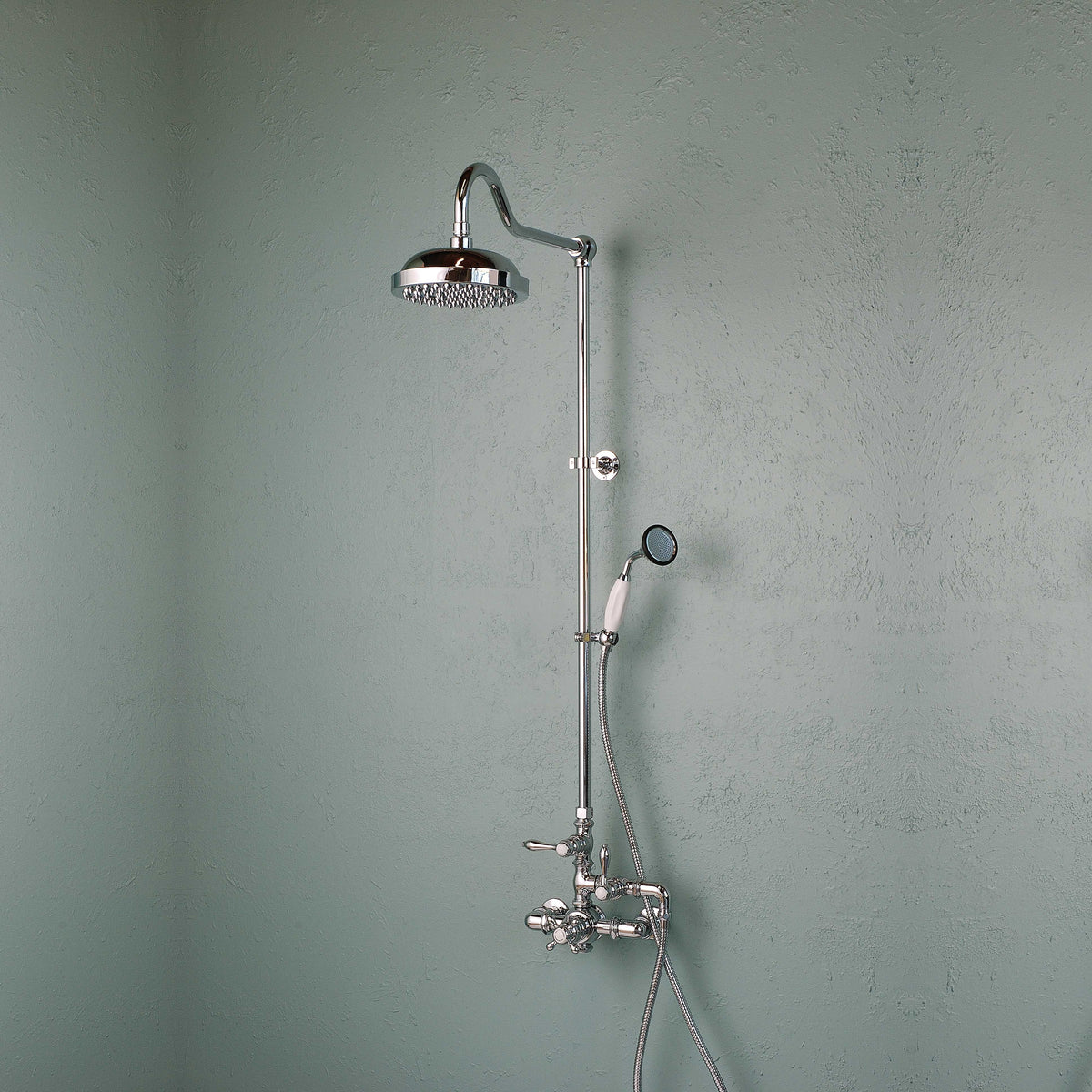

Strom Living P0902 exposed thermostatic shower with hand shower
